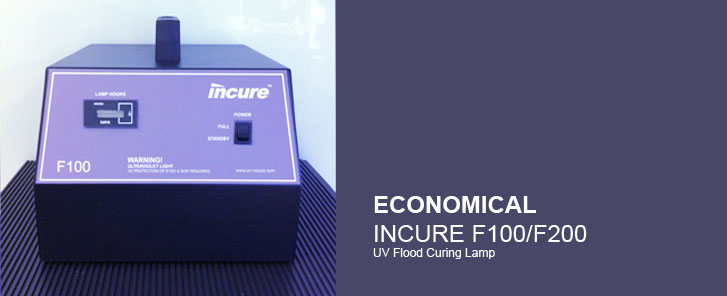

F100/F200 Compact UV Flood Curing Lamp

The F100/200 is a compact UV flood curing lamp. F100/F200 integrates all system components into a small lamp head which can be easily mounted anywhere on a factory floor, with virtually no cabling or remote control boxes required. Just mount the head, connect the AC line cord, and start curing! The long life 400/600-Watt metal halide type lamp and parabolic reflector illuminate an 8 x 6 inch curing area with evenly distributed 100mW/cm2 UVA light (320–390nm). The arc lamp is powered by the state of the art UV Power-Plus Lamp Driver. The head features a convenient carrying handle and sliding height adjustment bracket.
Download Bulletin for F100/200 UV Flood Curing Systems


      Specification

      General
      Model F100 F200
      Order Number 290005 290033

      Power Supply
      Input Voltage 90-132/180-265VAC  90-132/180-265VAC
      Input Current, 120/240V 7A/3.5A maximum  10A/5.0A maximum
      Source Input Frequency 47 Hz to 63 Hz  47 Hz to 63 Hz
      Lamp Power Regulation ± 1%  ± 1%
      Fan / Auxiliary Voltage 24V  24V

      Lamp
      Lamp Type 400 Watt Metal Halide  600 Watt Metal Halide
      Lamp Voltage 135 ± 15V  140 ± 10V
      Arc Length 32 mm  32 mm
      Burning Position Horizontal  Horizontal
      Radiation Flux 72 Watts  110 Watts
      Warm-up Time 2 minutes  2 minutes
      Cooling time before restart 5 minutes typical  5 minutes typical
      Curing Area 8 x 6'' minimum  8 x 6'' minimum
      Lamp Life 1000 hours typical  1000 hours typical

      Environmental
      Operating Temperature +10 °C to +40 °C  +10 °C to +40 °C
      Storage Temperature 0 °C to +60 °C  0 °C to +60 °C
      Relative Humidity 30 to 75% operating  30 to 75% operating
      Cooling Forced air  Forced air
      Over-temp shutdown 60°C (internal)  60°C (internal)

      Dimensions
      L x W x H (inches) 11” x 10” x 9”  11” x 10” x 9”
      Weight (lbs.) 13 Pounds  13 Pounds
