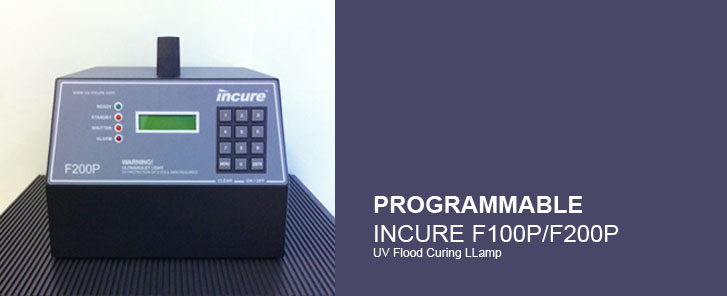

F100P/F200P Programmable UV Flood Curing Lamp

The F100P/F200P is a programmable UV flood curing lamp. The F100P/F200P integrates all system components into a small lamp which can be easily mounted anywhere on a factory floor, with virtually no cabling or remote control boxes required. Just mount the lamp, connect the AC line cord, and start timed exposure curing! The system contains an integrated retractable shade type shutter, which allows for repeatable exposure timing, and shields the user from UV radiation.

The system’s LCD display and digital keypad make programming and monitoring of curing operations a snap. The long life 400/600-Watt metal halide type lamp and parabolic reflector illuminate an 8 x 6 inch curing area with evenly distributed 200mW/cm2 UVA light (320–390nm). The arc lamp is powered by the state of the art UV Power-Plus Lamp Driver.

Download Bulletin for F200P Programmable UV Light Curing System
Download Specification for UVA Metal Halide Lamp - Lamp Spectral Distribution



        Specification

        General
        Model F200P
        Order Number 290007

        Power Supply
        Input Voltage 90-132/180-265VAC
        Input Current, 120/240V 10A/5.0A maximum
        Source Input Frequency 47 Hz to 63 Hz
        Lamp Power Regulation ± 1%

        Lamp
        Lamp Type 600 Watt Metal Halide
        Lamp Voltage 140 ± 10V
        Arc Length 32 mm
        Burning Position Horizontal
        Radiation Flux 110 Watts
        Warm-up Time 2 minutes
        Cooling time before restart 5 minutes typical
        Curing Area 8 x 6'' minimum
        Lamp Life 1000 hours typical

        Environmental
        Operating Temperature +10 °C to +40 °C
        Storage Temperature 0 °C to +60 °C
        Relative Humidity 30 to 75% operating
        Cooling Forced air
        Over-temp shutdown 60°C (internal)

        Dimensions
        L x W x H (inches) 11” x 10” x 9”
        Weight (lbs.) 15 Pounds
