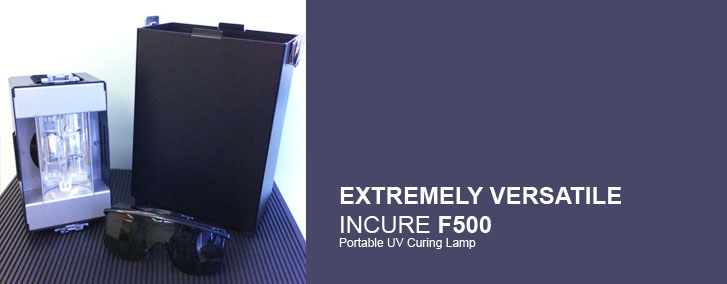

F500  Portable UV Flood Curing Lamp

The F500 is a portable or low production UV curing system. Because of its versatility, it can handle a variety of UV curing applications. With an effective curing width of 6", it is ideal for batch or conveyor mounted curing of small parts. Weighing-in at a mere 6 pounds, the system is also perfect for applications where frequent transportation is involved.
Download Bulletin for F500 High Intensity Portable UV Flood Curing Lamp

Download Specification for Metal Halide Lamp - Lamp Spectral Distribution



        Specification

        General
        Model F500-120V F500-240V
        Order Number 290004 290003

        Power Supply
        Input Voltage 100-120VAC ± 10% 200-240VAC ± 10%
        Input Current (max) 7 Amperes 3.5 Amperes
        Source Input Frequency 47 Hz to 63 Hz
        Lamp Power Regulation ± 1%

        Lamp
        Lamp Type 400 Watt Metal Halide
        Lamp Voltage 135 ± 15V
        Arc Length 32 mm
        Burning Position Horizontal
        Radiation Flux 72 Watts
        Warm-up Time 1 to 2 minutes
        Cooling time before restart 5 minutes typical
        Curing Area 6 x 3'' minimum
        Lamp Life 1000 hours typical

        Environmental
        Operating Temperature +10 °C to +40 °C
        Storage Temperature 0 °C to +60 °C
        Relative Humidity 30 to 75% operating
        Cooling Forced air
        Over-temp shutdown 67°C (internal)

        Dimensions
        L x W x H (inches) 8” x 5” x 16.5”
        Weight (lbs.) 6 Pounds
