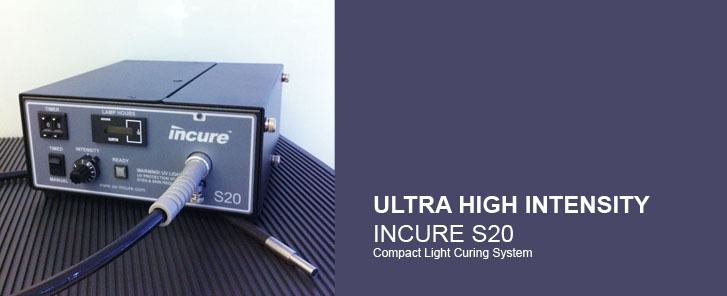

S20 Ultra High Intensity UV/Visible Light-Curing Spot Lamp

The S20 is a new generation ultra high intensity compact UV light curing system that emits up to 23W/cm2 of intensity at the tip of the light-guide (and 27W/cm2 at light source). The adjustable knob allows varying intensities to suit your application needs. With a guaranteed useful life of 2,000 hrs, Incure S20 provides the best value per mW/cm2 in its class. The system weighs a mere 6 pounds, and its 4 x 8.5 x 10.5 inch size is the smallest in its class.

Download Bulletin for S20 UV Light Curing System


          Specification

          General
          Model S20-120V S20-240V
          Order Number 290029 290028

          Power Supply
          AC Input Voltage 100-120VAC +/-10% 200-240VAC +/-10%
          AC Input Current (max) 4.7 Amperes 2.5 Amperes
          Source Input Frequency 47 Hz to 63 Hz
          Lamp Power Regulation ± 1.0%

          Lamp
          Lamp Type 200 Watt mercury
          Lamp Voltage 40VDC @ 5Amps
          Burning Position Horizontal
          Radiation Flux 275 - 650 nm
          Warm-up Time 1 to 2 minutes
          Cooling time before Restart 2 to 5 minutes typical
          Output Intensity (typical) >21W/cm2
          Lamp Life > 2,000 hours typical

          Environmental
          Operating Temperature +10 °C to +40 °C
          Storage Temperature 0 °C to +60 °C
          Cooling Dual DC fan, filtered
          Over-temp shutdown 65 °C (internal)

          Dimensions
          L x W x H (inches) 10.51” x 8.64” x 4.05”
          Weight (lbs.) 5.92 Pounds
