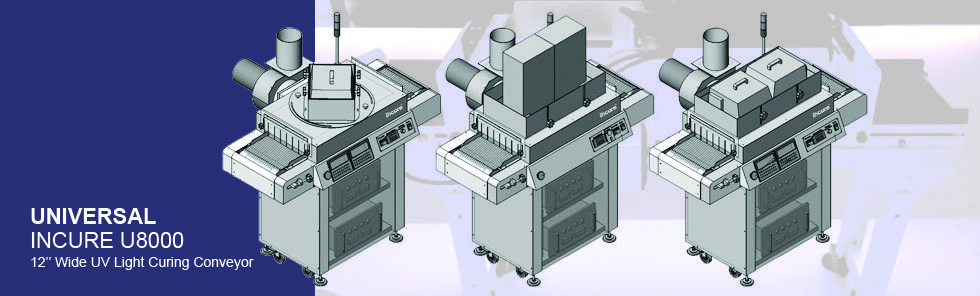

12'' Wide Universal UV Light Curing Conveyor Systems

Incorporating the latest technology in UV measurement and monitoring system, Hurricane U8000 Series UV Conveyors are designed for versatility and high volume production applications. Featuring the use of variable speed motor, with a velocity regulating drive that keeps the belt speed constant for varying loads.
U8000 series conveyors adds value in the long run, permitting the housing of various lamps to cater for the curing of different board/product sizes by simply changing the curing lamps and lamp holders.
Curing intensities and energies can be increased with additional lamps for increased outputs. The belt-to-lamp height can also be easily adjusted from 1.5 to 5 inches, for improved compatibility with varying board/product heights.
One of the key features is the built-in (optional) Intelligent iPatrolTM UMS (UV Monitoring System) for F200 and F500 lamps, which makes use of sensing cells to monitor UV lamps individually, offering Real-Time monitoring, triggering alarms when UV lamp power is out of the preset range.

UV Light Curing Conveyor Systems
        U8000 Conveyor with F200 Lamps U8000 Conveyor with F300 Lamps U8000 Conveyor with F500 Lamps
      Lamp(s) 1 2 1 2 1 2
      Bulb(s) MH* Mercury MH* Mercury 'D' 'H' 'V' 'D' 'H' 'V' MH* Mercury MH* Mercury
      Order Number 290092 290097 290091 290098 290093 290099 290100 290094 290101 290102 290095 290103 290096 290104
      Belt Width 12''
      Orientation CM FW CM FW CM
      CM = Center
      FW = Full width
      Width of Illuminated Area 6 8 6 12 6
      Belt Speed 1 to 40 fpm
      Voltage (VAC)* 220/230VAC
      *MH – Metal Halide Bulb
