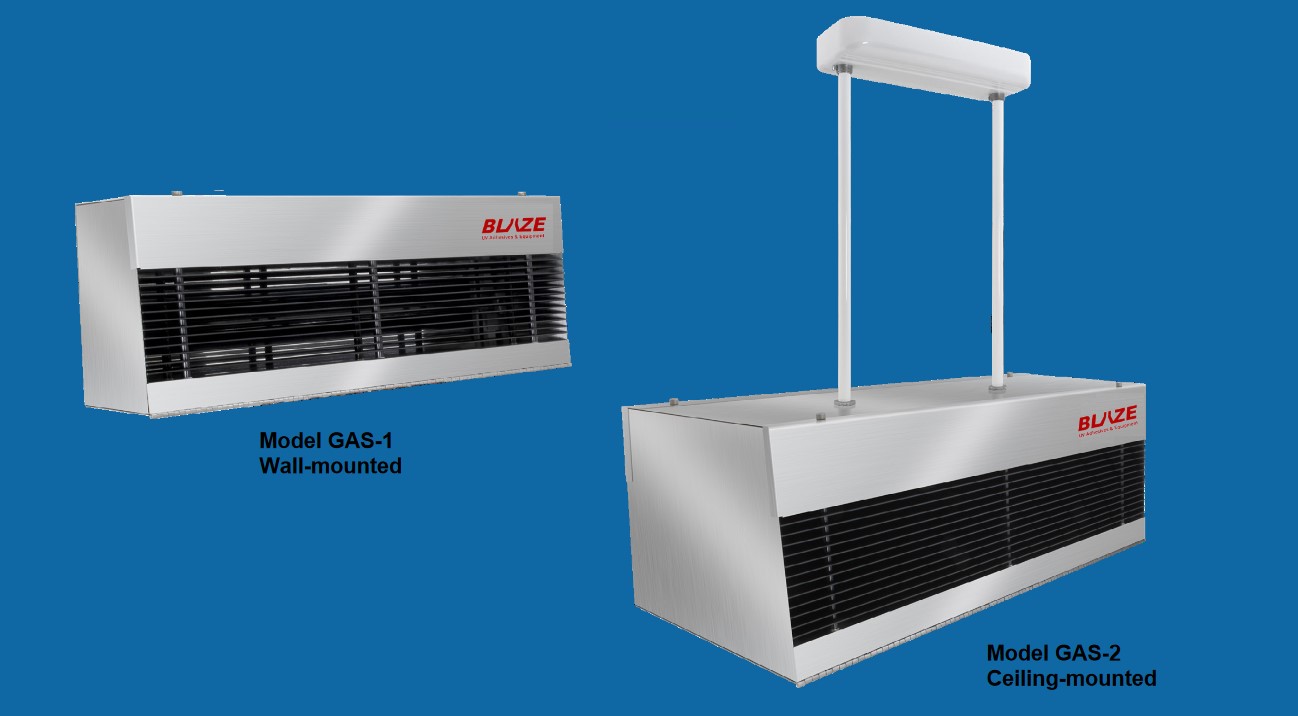

WALL / CEILING - MOUNT STERILIZER




 GERMICIDAL AIR STERILIZER




















 ADVANTAGES


 PRINCIPLE OF OPERATION





Efficient

Minimal power is required to operate.

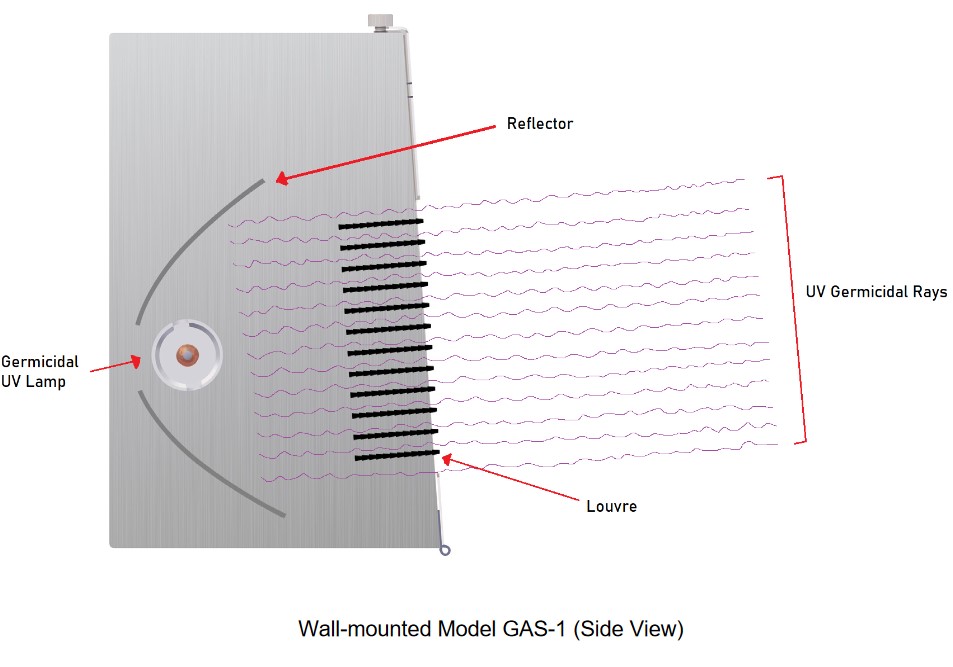

Wall-mounted Model GAS - 1 (Side View)



The UV-GAS models (ultraviolet germicidal air sterilizer) have been designed to direct germicidal UV rays to sterilize the air in the upper part of a room. Used in occupied spaces, the UV-GAS is capable of reducing the risk of cross contamination and exposure of occupants to contagious airborne contaminants.

The operation of the UV - GAS is as follows:

1. UV rays extended into the upper room

2. Germs and bacteria that are carried into the UV area by transmission currents or air movements are destroyed.

3. Air in the room is continuously being sterili




Safe

Low risk of ultraviolet rays over-exposure.




Automatic

Able to run continuously without special monitoring.




Low Maintenance

Only requires an annual lamp change and scheduled cleaning.




Rapid

Destroys harmful germs and bacteria, disinfecting the air in seconds.




Heavy-duty

Durable and lasting stainless steel and aluminium build.




Versatile

Various models available to suit different duct size




Effective

Minimizes the risk of cross-contamination and exposure of occupants to contagious biological airborne contaminants.






 blazeasia.com

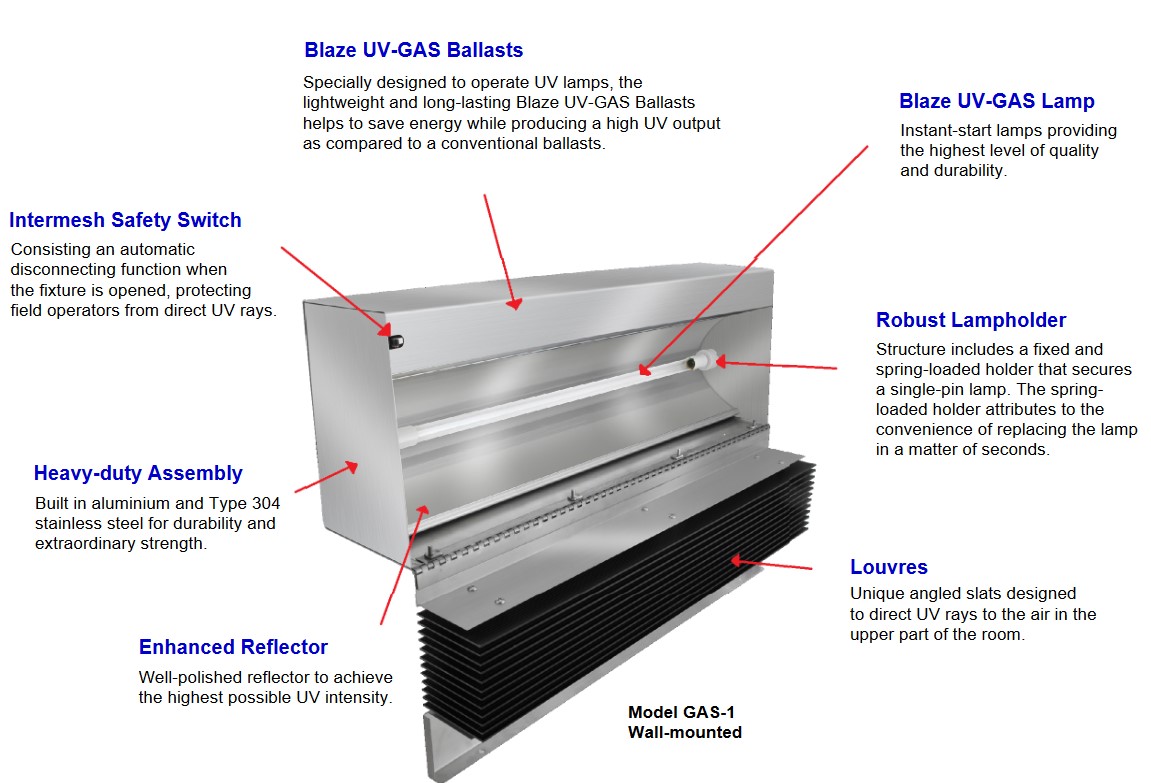

 SPECIAL FEATURES





  Model GAS - 1 Wall - mounted








 blazeasia.com





 INSTALLATION

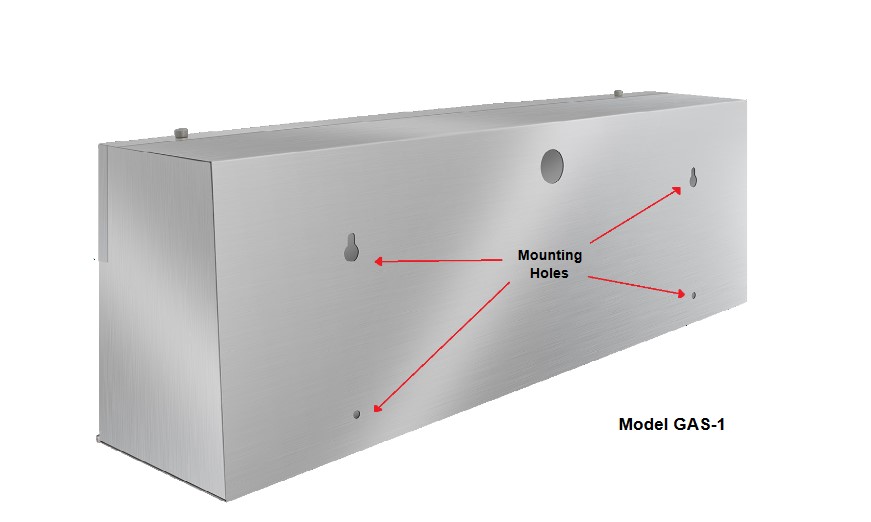

  Fig 1 - Mounting holes on the back side of UV-GAS Model GAS-1.
  Wall mount fixture needs to be installed to a hard and vertical surface, capable of safely supporting 7.2 kg and at a minimum height of 2.1 meters from the bottom of the fixture to the ground floor


 SPECIFICATIONS - MODEL GAS - 1 WALL - MOUNTED



Model Lamp* Lamp Wattage** UV Output*** Housing Dimensions Rated Lamp Lifespan
Height Width Depth
GAS-1 R-8431-50 (1) 31.5 W 8.6 W 61 cm 13.6 cm 20 cm 10,000 hours


        *Power Wattage is inclusive of ballast loss (estimated)
        **UV Output at wavelength 254 nm at 100 hours and 26 degrees C (estimated)




 blazeasia.com

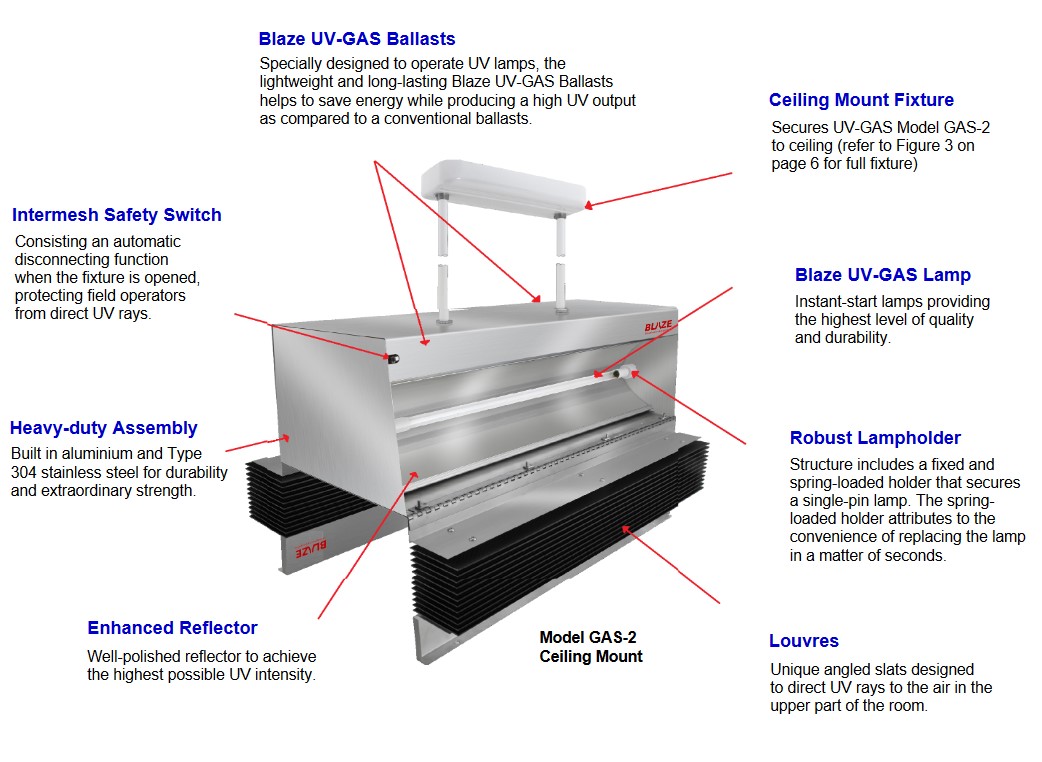

 SPECIAL FEATURES





  Model GAS - 2 Ceiling - mounted








 blazeasia.com





 INSTALLATION

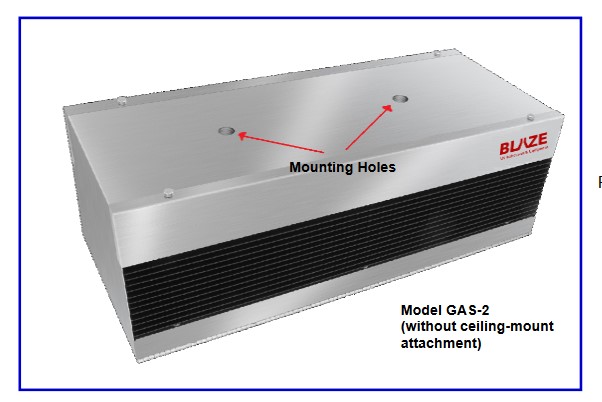

Fig 2 - The mounting holes on top of UV-GAS Model GAS-2 are for the ceiling mount attachment (refer to Figure 3).

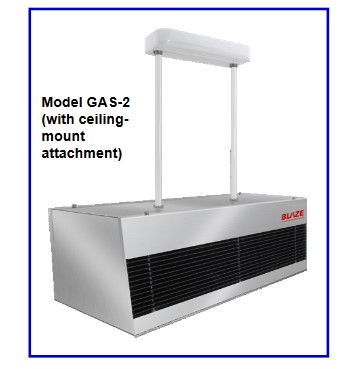

Fig 3 - Shows UV-GAS Model GAS-2 with ceiling mount attachment.

  Ceiling mount fixture needs to be capable of safely supporting 14.5 kg and at a minimum height of 2.1 meters from the bottom of the fixture to the ground floor.


 SPECIFICATIONS - MODEL GAS-2



Model Lamp* Lamp Wattage** UV Output*** Housing Dimensions Rated Lamp Lifespan
Height Width Depth
GAS-2 R-8431-50 (2) 61.5 W 17.1 W 61 cm 26.8 cm 20 cm 10,000 hours


  *Power Wattage is inclusive of ballast loss (estimated)
  **UV Output at wavelength 254 nm at 100 hours and 26 degrees C (estimated)




 blazeasia.com





 OPTIONAL ACCESSORIES







Blaze UV - C Radiometer

Lightweight, hand-held, UV radiometer; Used for measuring the intensity of UV lamps to ensure UV-C produced is within safe levels.




UV - GAS Lamp Safety Shield

Extra Protection layer (refer to lamp on the light) applied to Blaze UV-GAS lamps ensures safety for field operators, occupants, products and the environment by eliminating all possible hazards from debris of broken lamps.





UV-GAS Anti - UV Safety Glasses

Tinted, UV-blocking safety glasses; Used for general safety protection against harmful UV rays to the eyes.




UV-GAS Face Shield

Adjustable fit visor provides protection to the face and eyes;





 blazeasia.com





 OPERATING CHARACTERISTICS










 UV DOSAGE





 UV sterilization lamps are effective against bacteria, viruses, mold, etc.

 Shown below is a short list and the required dosage* to destroy more than 99% of the particular organism




ORGANISM TYPE DISEASE DOSE
Mycobacterium Tuberculosis Bacteria Tuberculosis (TB) 10,000
Influenza Virus Flu 6,600
Leptospira Interrogans Bacteria Jaundice 6,000
Hepatitis Virus Hepatitis 8,000
Escherichia coli Virus Bacteriophage 6,600
Eberthella Typhosa Bacteria Typhoid Fever 4,100
Coxsackie A Virus Hand, Food and Mouth Disease (HFMD) 6,900
Rotavirus Virus Gastroenteritis 26,000


  *Ultraviolet light dose required for 99.9% destruction of various micro-organisms n mW seconds per square centimeter at wavelength 254nm.


 blazeasia.com

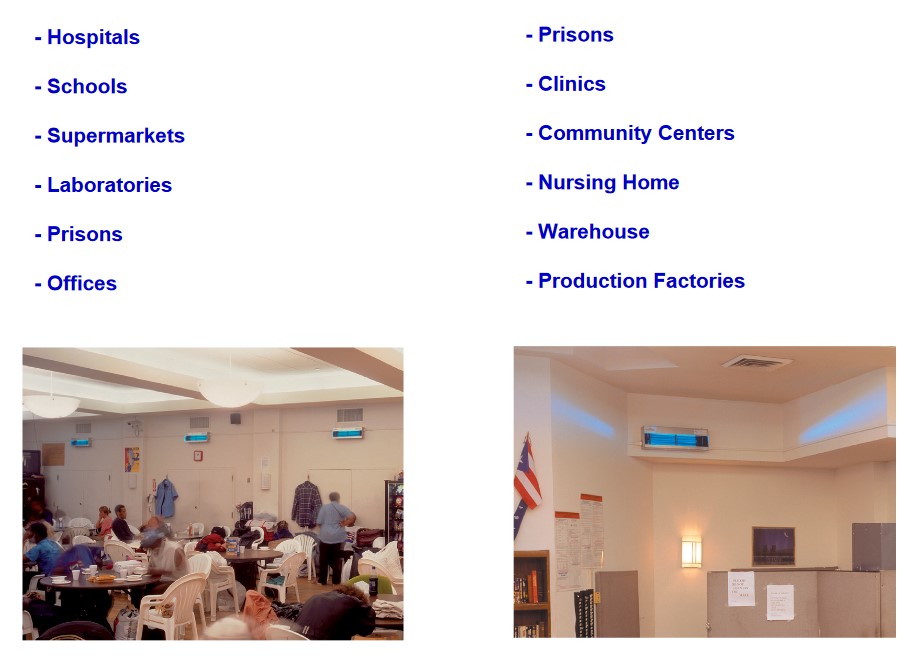

 APPLICATIONS







Blaze UV-GAS germicidal air sterilizers are used to sterilize the air in the upper part of a room. These fixtures help to reduce risk of cross contamination which risk occupants to harmful airborne bacteria and viruses. The unique design of the UV-GAS models help direct UV rays across the occupied space, destroying germs and bacteria and hence, helps prevent occupants to the exposure of contagious airborne contaminents.

When using the UV-GAS germicidal air sterilizer, it is important to note the minimum mounting height requirement. Both UV-GAS 1 and UV-GAS 2 models should be installed at least 2.1 meters from the bottom of the fixture to the ground floor. Mounting the fixtures according to the minimum requirement will ensure safe use


  CAUTION :  Direct exposure (close distance) to UV rays can result in eye irritation and redness of skin. Personnel subjected to direct exposures must wear suitable protective gear e.g. face shield, gloves, anti-uv glasses
