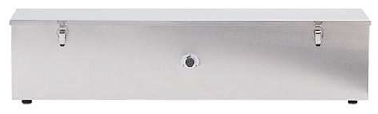

Ozonation Generators

Product Overview

- Purifies air with ultraviolet technology
- Kills mold and mold odor
- Removes smoke & other strong odors
- Destroys harmful bacteria, mold and viruses in the air
- Units may be mounted on a wall or are available for portable use
- Washable Electrostatic particulate filters
- Disposable filters available for most models

Download a copy Blaze UV Ozone Generator

Features

Ultraviolet Germicidal Ozone Producing Lamps provide the utmost in quality, sustained high output and long life.
Lampholders are spring loaded telescopic type that facilitate convenient, easy lamp change that is quick and hassle-free.
Interlock Safety Switch The interlock safety switch is a standard feature that disconnects power to the unit when the access panel is removed for lamp or filter replacement.
Standard Wall Mount Kit Consists of (2) pre-drilled stainless steel brackets. Brackets enable unit to be mounted to wall in either the vertical or horizontal position.
Louvered Exhaust Panel Protects the room’s occupants from ultraviolet exposure by restricting ultraviolet radiation from passing into the room. Generator should be used in unoccupied area.
Observation Port(s) A visible glow through the clear sight glass provides positive indication of germicidal lamp operation.
Stainless Steel Construction The chamber is Type 304 stainless steel for an attractive finish, unparalleled strength and durability.
Particulate Filter - Washable Electrostatic Filter
Principal Of Operation

(1)  Air is drawn into unit through washable electrostatic particulate filters
(2)  Air is forced into ultraviolet exposure chamber where it is irradiated by germicidal ultraviolet light (lamp quantity varies per model).
(3) Observation port provides positive indication of germicidal lamp operation.
(4) Purified air and ozone leaves exposure chamber through the louvered exhaust panel (which restricts ultraviolet radiation from passing into the room).

Commercial Models


Model

Nominal

(1)

UnitCapacity

(CFM)

Dimensions

Electrical *(2)

Requirement

Max. Room

Size

Treated @ 3

Room

Air

Changes /Hour

Max. Room

Size

Treated @ 6

Room

Air

Changes /Hour

Max.

Treatment

Capacity

(CFH)

Length Width Height
250050 54 34-1/2’’ 7-3/4’’   7-3/4’’ 1.30 amp 1,060
Cubic Ft.

530
Cubic Ft.

3,180
250002 104 34-1/2’’ 7-3/4’’’’ 7-3/4’’’’ 2.90 amp 2080
Cubic Ft.
1,400
Cubic Ft.
6,240
250049 326 47-5/16’’ 14’’’ 12’’’ 4.93 amp 6,500
Cubic Ft.
3,250
Cubic Ft.
19,500
